Baffle False Ceiling in Bangalore — Elysian False Ceiling

About This Service

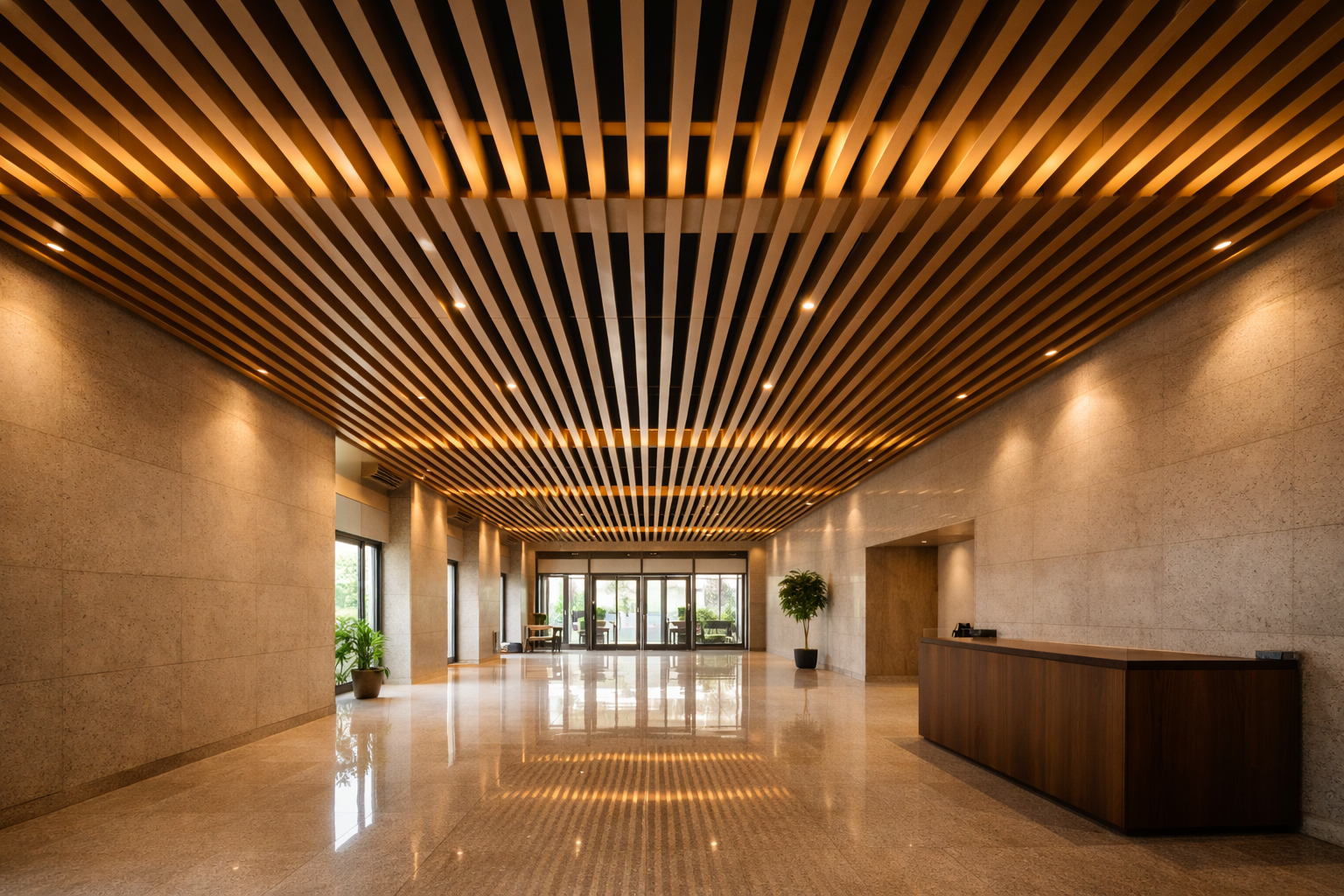

What is a baffle false ceiling?

Baffle ceilings consist of vertical blades or fins suspended in parallel rows from a carrier rail system fixed to the structural ceiling. Unlike flat panel systems that create a closed plane above the space, baffle blades hang in open formation — creating depth, rhythmic shadow play, and a defined ceiling zone without fully enclosing the volume. The space above the baffles remains accessible for services and continues to feel part of the overall spatial volume.

The blades themselves are available in aluminium (powder-coated in any standard or custom colour), galvanised steel, solid wood, and WPC. Aluminium is the default choice for most commercial projects — it is light, corrosion-resistant, dimensionally stable, and available in a wide colour palette from RAL standards. Wooden baffles introduce organic warmth to high-volume commercial spaces: restaurants, hotel lobbies, and boutique co-working environments where the cold precision of aluminium is too industrial in character.

Baffle ceilings are particularly valued in spaces with exposed ductwork or services above — rather than concealing these elements behind a solid ceiling, baffles allow a deliberate view of the industrial elements above while still providing a visual ceiling plane at the blade level. This approach is central to the contemporary industrial-modern aesthetic seen in tech-company offices, F&B venues, and co-working spaces across Bangalore. For spaces where complete concealment is preferred but acoustic performance still matters, grid ceiling systems with high-NRC tiles are the alternative we recommend.

Best suited for: Corporate office lobbies, restaurant dining areas, co-working spaces, retail showrooms, hotel common areas, airport and transit areas, gym and sports facilities, and any large-volume commercial space where architectural drama and acoustic performance are both required.

Close-up of suspended aluminium baffle blade system with parallel fins creating shadow pattern commercial space Bangalore — Elysian False Ceiling

Why Baffle Ceiling

Why choose a baffle ceiling for your space?

Four properties that make baffle ceilings the defining ceiling choice for Bangalore's most architecturally ambitious commercial interiors.

01

Dramatic architectural presence at any scale

A baffle ceiling creates an architectural statement that is impossible to achieve with any flat panel system. The parallel blade rows generate a strong directional rhythm that draws the eye across the space — and the play of light and shadow between blades changes as the viewer moves through the room. In a large lobby or double-height space, a well-designed baffle ceiling is the single element that defines the character of the entire interior and creates the first and strongest impression on visitors.

02

Acoustic absorption between the blades

Baffle fins absorb mid-frequency sound from both sides of each blade, reducing the ambient noise and reverberation typical of large commercial spaces with hard surfaces. While dedicated acoustic panels achieve higher NRC ratings, baffle ceilings provide meaningful noise reduction without requiring a separate acoustic treatment layer. For open offices, restaurants, and co-working environments, the acoustic benefit of a baffle ceiling is a genuine functional advantage — not an aesthetic choice masquerading as performance.

03

Conceals services while preserving air circulation

Baffle systems partially obscure ductwork, wiring, and sprinkler systems above while allowing air to circulate freely between the blades. This is a practical advantage over solid false ceilings in spaces with large HVAC systems — the ducts are softened visually without the thermal and airflow penalties of a sealed ceiling cavity. HVAC diffusers are typically integrated at the baffle level or recessed into the carrier rail, maintaining the clean profile of the blade system.

04

Accessible for maintenance and service changes

Individual baffle blades are removable from the carrier rail without any cutting, patching, or ceiling damage. If electrical or HVAC services above the ceiling need modification, the relevant blades are removed and refitted in minutes. In commercial spaces that change fit-out frequently — retail stores, exhibitions, co-working floors — this reversibility is a significant advantage over fixed panel systems that require cut-and-patch every time a service changes.

Materials

Materials we use for baffle ceilings

Baffle blade material is selected based on the space type, required finish, acoustic goals, and whether the area has moisture or chemical exposure.

Aluminium baffle profiles (powder-coated)

The standard choice for commercial baffle installations. Extruded aluminium blades are lightweight, rigid, corrosion-resistant, and available in any RAL powder-coat colour. Blade depths range from 50mm to 200mm. White, grey, black, and custom colours are all available with consistent finish across all blades.

Wooden baffle blades

Solid wood or engineered wood baffle blades introduce warmth and natural character to commercial spaces where aluminium is too cold in aesthetic. Available in teak, oak, and MDF with veneer. Anti-termite treatment applied as standard. Recommended for restaurants, hotel lobbies, and premium co-working environments.

WPC baffle blades

Wood Polymer Composite blades offer the wood-grain appearance with the moisture and termite resistance of a synthetic material. The right choice for semi-outdoor areas, covered walkways, pool areas, and any commercial space with elevated humidity or cleaning-chemical exposure.

GI carrier rail system

All baffle blades are suspended from a hot-dip galvanised steel carrier rail, fixed to the structural ceiling via adjustable hanger rods. The carrier rail is levelled precisely during installation and typically painted to match the baffle blades for a visually cohesive system. Blade pitch, depth, and spacing are set at the carrier rail level.

Aluminium baffle blade close-up showing powder coat finish and carrier rail system commercial Bangalore — Elysian False Ceiling

How We Work

Our baffle ceiling installation process

Five structured steps from ceiling layout design to a finished baffle system ready for handover.

01

Site survey and blade layout design

We assess the space, measure ceiling height and span, identify above-ceiling services (HVAC, electrical, plumbing), and design the baffle blade layout. Blade direction, spacing, depth, and drop height are determined relative to the room's proportions, services, and lighting plan. Directional alignment — running parallel or perpendicular to the primary sightline — is a key design decision made at this stage.

02

Carrier rail installation and levelling

GI carrier rails are fixed to the structural ceiling via adjustable hanger rods at the designed drop height. The carrier rail system is checked for level and straightness using a laser level before any blades are attached. All anchor points into the structural ceiling are checked for load capacity before the hanging system is finalised.

03

Baffle blade mounting and spacing

Baffle blades are clipped or bolted to the carrier rail at the designed pitch spacing. Each blade is checked for vertical alignment using a spirit level. Consistent blade spacing is maintained with spacer clips throughout, ensuring the rhythmic parallel pattern is geometrically precise from every angle in the room.

04

Service integration and lighting

HVAC diffusers are positioned within the baffle system and integrated into the carrier rail or a dedicated diffuser frame. LED strip lighting is installed along the carrier rail or blade tops where specified. Pendant downlights or spotlights suspended through the baffle plane are positioned and wired at this stage.

05

Alignment verification and handover

A final walkthrough confirms that all blades are plumb, spacing is consistent, lighting operates correctly, and the carrier rail system is clean and level throughout the installation area. We document the blade pitch, depth, and carrier rail positions for your records — useful for any future modifications or additional sections.

Project Gallery

Baffle ceiling projects in Bangalore

A selection of completed baffle ceiling installations in commercial spaces across Bangalore.

Corporate office lobby aluminium baffle ceiling with directional blade pattern and LED lighting Electronic City Bangalore — Elysian False Ceiling — Corporate lobby — charcoal aluminium baffle ceiling with carrier rail LED, Electronic City

Restaurant dining area with wooden baffle ceiling warm walnut blades and pendant lighting Indiranagar Bangalore — Elysian False Ceiling — Restaurant dining area — walnut wooden baffle ceiling with pendant drops, Indiranagar

Gym reception area metal baffle ceiling with white aluminium blades and recessed lighting HSR Layout Bangalore — Elysian False Ceiling — Gym reception — white aluminium baffle system with recessed downlights, HSR Layout

Co-working space WPC baffle ceiling creating zone definition and acoustic treatment Koramangala Bangalore — Elysian False Ceiling — Co-working lounge — WPC wood-grain baffle ceiling with zone lighting, Koramangala

Large car showroom aluminium baffle ceiling dramatic blade pattern high ceiling volume Hebbal Bangalore — Elysian False Ceiling — Car showroom — aluminium baffle ceiling across 5,000 sq.ft with track lighting integration, Hebbal

Villa accent zone wooden baffle ceiling creating dining area definition Yelahanka Bangalore — Elysian False Ceiling — Villa dining accent zone — wooden baffle ceiling drop over dining table, Yelahanka

Packages

Choose your package

Every baffle ceiling project is quoted based on blade type, spacing, area, and lighting integration scope.

Basic

Standard aluminium blades in white or grey
Single blade direction, uniform spacing
Essential lighting provisions

8-Year Warranty

Best for: Warehouses, utility commercial areas, straightforward baffle applications

Get a Quote →

Standard

Powder-coated aluminium in custom colour
Design-led blade spacing and depth selection
Integrated LED lighting along carrier rail

12-Year Warranty

Best for: Offices, co-working spaces, restaurant dining areas

Get a Quote →

Premium

Wooden or bespoke aluminium blade profile
Variable blade depth and mixed spacing zones
Full lighting integration — rail LED, pendants, and spotlights

15-Year Warranty

Best for: Corporate lobbies, showrooms, hotel common areas

Get a Quote →

Have a specific commercial space in mind? Chat with us on WhatsApp.

FAQs

Frequently asked questions

Common questions about baffle ceiling installation for commercial spaces in Bangalore.

What are baffle ceilings made of?

Baffle ceilings use vertical blade profiles made from aluminium (powder-coated in any colour), galvanised steel, solid wood, or WPC. Aluminium is the most common choice for commercial spaces due to its light weight, corrosion resistance, and wide colour range. Wooden baffles are used where warmth and natural material character are priorities. WPC is specified for semi-outdoor or humid environments where natural wood would deteriorate.

Can baffle ceilings be used in homes?

Baffle ceilings are primarily designed for commercial spaces with high ceiling volumes. In residential settings, they are occasionally used in double-height living rooms or villas where the ceiling height justifies the drama of hanging baffle blades. For standard residential ceiling heights of 9 to 10 feet, a baffle ceiling would feel visually overwhelming and is generally not recommended — we would suggest gypsum or wooden ceiling alternatives for most home applications.

How do you clean and maintain baffle ceilings?

Baffle blades are accessible from below and can be wiped with a damp cloth. Aluminium powder-coated blades are low maintenance — routine vacuuming or compressed air removes accumulated dust. Wooden blades require periodic dusting and occasional protective re-coating. The open spaces between blades allow regular cleaning without disassembly, which is a practical advantage over panel systems in commercial environments with regular maintenance schedules.

What is the standard spacing between baffle blades?

Blade spacing typically ranges from 50mm to 200mm, with 100mm being the most common for commercial applications. Closer spacing increases acoustic absorption and limits sightlines above the ceiling. Wider spacing creates a more open, industrial look and allows views of the ductwork above for intentionally exposed aesthetics. We calculate the optimal spacing during the design phase based on your visual and acoustic objectives.

Can baffle ceilings integrate lighting?

Linear LED strip lighting is commonly integrated along the top or bottom edge of baffle blades, or mounted on the carrier rail above the baffles to wash down between the fins. Pendant downlights can also be suspended through the baffle system at specific points. Lighting integration is planned during the layout design stage to ensure even distribution and correct fixture positioning relative to blade alignment.

Are baffle ceilings suitable for large open-plan offices?

Baffle ceilings are particularly well-suited to large open-plan offices with high ceilings. The vertical fins absorb reflected sound, reducing the ambient noise common in open-plan environments. The baffle plane defines a visual ceiling zone without completely enclosing the space, maintaining the sense of height while creating a finished, professional appearance. Above-ceiling services remain accessible through the open baffle system without any cutting or patching of the ceiling.
